State Diagram:

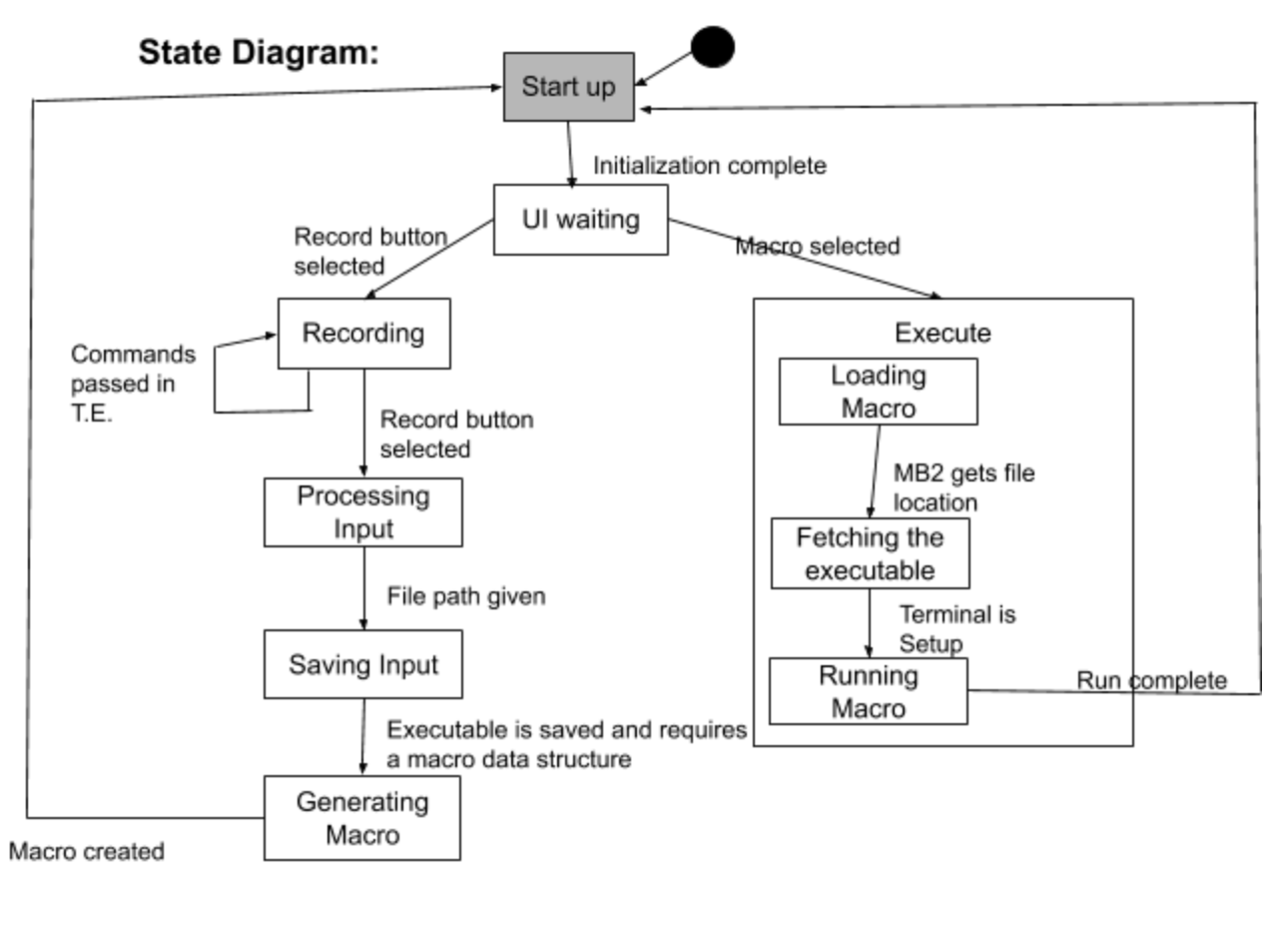

This diagram shows the expected states in the MB2 application and the order in which the MB2 application goes into these states. On the left, a recording sequence is illustrated; on the right, an execute sequence is illustrated. Many of these states are automated except for when capturing the user’s input during the “recording” state.
